Humanitarian UAV Missions During Balkan Floods

The Balkans recently experienced the heaviest rains in 120 years of recorded weather measurements, causing massive flooding and powerful landslides. My colleague Haris Balta, a certified UAV pilot with the European Union’s ICARUS Unmanned Search & Rescue Project (and a member of the Humanitarian UAV Network, UAViators), was deployed to Bosnia to support relief efforts. During this time, another colleague, Peter Spruyt from the European Commission (DG JRC), was also deployed to the region to carry out a post-disaster needs assessment using UAVs.

Image: Flood in Bosnia and Herzegovina

Haris, who also works at the intersection of robotics and demining, was asked by the Government of the Federation of Bosnia and Herzegovina to identify the location of mines displaced due to the major flooding and mudslides. As it turns out, some mines were displaced as far as 23 kilometers. When the flood waters subsided and villagers returned, most were unaware of this imminent danger. Haris used a rotary-wing UAV (the quadcopter pictured below) and logged some 20 flights (both manual and autonomous) at more than a dozen locations.

ICARUS Quadcopter

Screen Shot 2014-07-02 at 9.41.49 AM

The purpose of these flights was to capture imagery that could be used to identify displaced land mines and to analyze the effects of landslides on other explosive remnants of war. Haris and team created 3D maps from the imagery and used geo-statistical modeling to try and determine in which direction land mines may have been displaced. The imagery also provided valuable information on dyke-breaches and other types of infrastructure damage.

Meanwhile, my colleague Peter from DG JRC (who is also a member of the Humanitarian UAV Network) flew a light fixed-wing UAV in five locations to support damage and needs assessments in close collaboration with the World Bank and the UN. According to Peter, both local and regional authorities were very supportive. Some of the resulting images and models of landslide areas are depicted below, courtesy of DG JRC (click to enlarge).


Screen Shot 2014-07-02 at 12.39.17 PM

Screen Shot 2014-07-02 at 12.31.18 PM

I just introduced Peter and Haris since they weren’t aware of each other’s respective efforts. If you’re participating in humanitarian UAV missions, please consider sharing you work with the Humanitarian UAV Network by posting a quick summary of your mission to the Network’s Operations page; even a one-sentence description will go a long way to facilitate information sharing.


See Also:

  • Humanitarians in the Sky: Using UAVs for Disaster Response [link]
  • Crisis Map of UAV/Aerial Videos for Disaster Response [link]
  • Using UAVs for Search & Rescue [link]
  • Debrief: UAV/Drone Search & Rescue Challenge [link]
  • Crowdsourcing Analysis of UAV Imagery for Search/Rescue [link]
  • Check-List for Flying UAVs in Humanitarian Settings [link]

How Crowdsourced Data Can Predict Crisis Impact: Findings from Empirical Study on Haiti

One of the inherent concerns about crowdsourced crisis information is that the data is not statistically representative and hence “useless” for any serious kind of statistical analysis. But my colleague Christina Corbane and her team at the European Commission’s Joint Research Center (JRC) have come up with some interesting findings that prove otherwise. They used the reports mapped on the Ushahidi-Haiti platform to show that this crowdsourced  data can help predict the spatial distribution of structural damage in Port-au-Prince. The results were presented at this year’s Crisis Mapping Conference (ICCM 2010).

The data on structural damage was obtained using very high resolution aerial imagery. Some 600 experts from 23 different countries joined the World Bank-UNOSAT-JRC team to assess the damage based on this imagery. This massive effort took two months to complete. In contrast, the crowdsourced reports on Ushahidi-Haiti were mapped in near-real time and could “hence  represent an invaluable early indicator on the distribution and on the intensity of building damage.”

Corbane and her co-authors “focused on the area of Port-au-Prince (approximately 9 by 9 km) where a total of 1,645 messages have been reported and 161,281 individual buildings have been identified, each classified into one of the 5 different damage grades.” Since the focus of the study is the relationship between crowdsourced reports and the intensity of structural damage, only grades 4 and 5 (structures beyond repair) were taken into account. The result is a bivariate point pattern consisting of two variables: 1,645 crowdsourced reports and 33,800 damaged buildings (grades 4 and 5 combined).

The above graphic simply serves as an illustrative example of the possible relationships between simulated distributions of SMS and damaged buildings. The two figures below represent the actual spatial distribution of crowdsourced reports and damaged buildings according to the data. The figures show that both crowdsourced data and damage patterns are clustered even though the latter is more pronounced. This suggests that some kind of correlation exists between the two distributions.

Corbane and colleagues therefore used spatial point pattern process statistics to better understand and characterize the spatial structures of crowdsourced reports and building damage patterns. They used the Ripley’s K-function which is often considered “the most suitable and functional characteristic for analyzing point processes.” The results clearly demonstrate the existence of statistically significant correlation between the spatial patterns of crowdsourced data and building damages at “distances ranging between 1 and 3 to 4 km.”

The co-authors then used the marked Gibbs point process model to “derive the conditional intensity of building damage based on the pairwise interactions between SMS [crowdsourced reports] and building damages.” The resulting model was then used to compute the predicted damage intensity values, which is depicted below with the observed damage intensity.

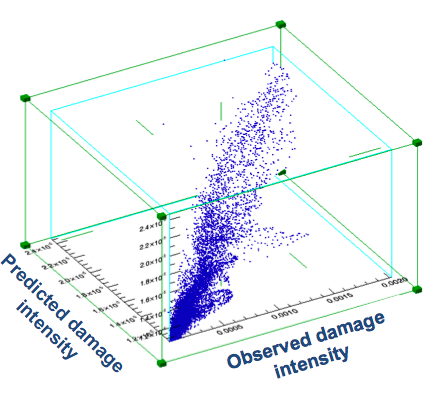

The figures clearly show that the similarity between the patterns exhibited by the predictive model and the actual damage pattern is particularly strong. This visual inspection is confirmed by the computed correlation between the observed and predicted damage patterns shown below.

In sum, the results of this empirical study demonstrates the existence of a spatial dependence between crowdsourced data and damaged buildings. The results of the analysis also show how statistical interactions between the patterns of crowdsourced data and building damage can be used for modeling the intensity of structural damage to buildings.

These findings are rather stunning. Data collected using unbounded crowdsourcing (non-representative sampling) largely in the form of SMS from the disaster affected population in Port-au-Prince can predict, with surprisingly high accuracy and statistical significance, the location and extent of structural damage post-earthquake.

The World Bank-UNOSAT-JRC damage assessment took 600 experts 66 days to complete. The cost probably figured in the hundreds of millions of dollars. In contrast, Mission 4636 and Ushahidi-Haiti were both ad-hoc, volunteer-based projects and virtually all the crowdsourced reports used in the study were collected within 14 days of the earthquake (most within 10 days).

But what does this say about the quality/reliability of crowdsourced data? The authors don’t make this connection but I find the implications particularly interesting since the actual content of the 1,645 crowdsourced reports were not factored into the analysis, simply the GPS coordinates, i.e., the meta-data.
