Testing Agile Cargo Drone Delivery to Improve Healthcare

Hard-to-reach communities need more than paved roads to access healthcare. They need both affordable and convenient transportation to and from local healthcare providers. If it costs too much to get to the clinic, then they’ll never get to the clinic. If it takes too much time to get to the clinic, then they’ll never get to the clinic. Why? Because their choices are limited. They may be too sick to spend hours traveling back and forth to a clinic. They may not have the option of taking time off work or cannot afford to forgo the income. Or they may have family responsibilities that limit how long they can be away from home.

Hard-to-reach communities need more than paved roads to access healthcare. They need affordable and convenient transportation to and from local healthcare providers.

Discussions around the last mile typically focus on the challenge of delivering medicines to local healthcare facilities rather than caring for the patient directly. So what would totally agile, peer-to-peer cargo drone delivery look like?

Cargo drones that deliver medical supplies always follow predetermined routes. They transport medicines from one fixed point to another—regional hospitals to remote clinics, for example. But what if Community Health Workers (CHWs) need additional medicines while visiting remote communities? They may not know exactly what they need ahead of time or they’re unable to carry a wide range of medicines with them across rough terrain. Worse, what if CHWs aren’t available and patients have difficulty getting to the clinic or to the pharmacy?

While discussions around the use of cargo drones for medical deliveries typically focus on “long range” deliveries (100km+), smaller cargo drones can also play an important role in literal last-mile deliveries, the last 1,600 meters.

To explore this further, we invited our new technology partner, Dronistics, to join us and Dominican Republic Flying Labs in the remote mountains of Montasitos. Using large, long-range drones to make one-mile deliveries isn’t a good use of resources. These drones typically need more space to land and require pre-approved fixed-routes. In contrast, because Dronistics is more of a flying ball than a traditional drone, therefore can be safely operated and can deliver directly to individuals within a one-mile radius. This approach could help Flying Labs democratize cargo drone deliveries, enabling remote communities to both send and receive deliveries.

This exploration in the Dominican Republic was the first time that Dronistics field tested their solution outside of Switzerland. They learned a lot from the experience and were very good about carefully documenting all of our feedback. Equally important, they were a great team player; very respectful of local partners and communities, humble, thoughtful and keen to learn. These human qualities are more important to us than any startup’s drone technology. As such, we’re already exploring further collaboration between Dronistics and several other Flying Labs around the world.

In the meantime, we sincerely thank the Municipality of Montasitos along with local communities for their time and their kind welcome. We also thank the Centro de Innovacion De Drones, Parque Cibernatico, Dronistics and Pfizer for their generous partnership and support on this project. We would also like to thank NCCR Robotics that supports Dronistics through an NCCR Robotics Spin Fund Grant.


To learn more about the use of cargo drones in public health, please see our dedicated online course on the topic. And explore previous cargo drone projects run by WeRobotics and Flying Labs. Note that the Dronistics flights in the DR were for demo and exploratory purposes only, no official deliveries were made.

Field Testing Medical Cargo Drones in the DR

My team and I at WeRobotics recently teamed up with Emprende and other partners in the Dominican Republic (DR) to field test the delivery of cargo by drone. A more detailed and technical report is being prepared; similar to the one we published on our cargo drone field tests in the Peruvian Amazon Rainforest. In the meantime, this blog post serves as a short overview of the project, which was kindly supported by the Inter-American Development Bank (IADB).

We programmed the DR drones to transport medical supplies between local hospitals and remote villages in the mountains, several hours north of Santo Domingo. In addition to the tests, we provided local students and others with hands-on training on how to operate both multi-rotor drones and hybrid drones for cargo delivery. Building local capacity is central to our work at WeRobotics.

Transporting medicines and patient samples between hospitals (the red markers on the map above) and remote clinics (green & purple markers) in the mountains of the DR can be slow and expensive. While roads to these remote clinics do exist, they are not always paved and those that are paved are sometimes impassable due to the rivers that cross them, even during the dry season. Furthermore, while the road network in the mountains of the DR is impressively widespread, the local ownership of motorized vehicles is certainly not, nor is the availability of public transportation.

Villagers in these remote regions earn very little income and do not have the time to spend an entire day traveling to and from the nearest hospital to get their blood tested even though said hospital may “only” be 20 or 30 kilometers away. The reason this takes a day is because there is often only one “bus” (usually a truck) that goes to and from town once a day, leaving early in the morning and returning mid-afternoon. And the “bus” is obviously not free. Some patients are in pain, and simply unable to just “hop” on the back of a truck driving over bumpy roads for an hour or more under the sun. As such, doctors working at these hospitals and clinics are keen to explore other ways to expedite the collection and testing of patient samples and distribution of essential medicines.

In some cases, remote villages will have a small clinic. But these small clinics often lack a continuous supply of medicines. This is particularly problematic for patients who need to take specific medicines on a regular basis. What’s more, sending patient samples that require a specialized laboratory for testing purposes and then receiving results of this testing is also a cumbersome task that becomes complicated. These logistical challenges can potentially be alleviated by introducing the use of cargo drones.

Emprende invited WeRobotics to build local capacity and evaluate the use of drones for the collection and delivery of patient samples and medicines, and to field test two drones in the process. This local training and cargo flights took place over a 10-day period in two different mountainous regions of the DR. The training and flight operations were carried out in partnership with Emprende and other stakeholders. The purpose of these tests was to better understand the opportunities and limitations of using affordable solutions for the rapid delivery of essential supplies in the DR. As such, the field tests sought to better understand the failure points and failure rates of the technology while developing streamlined workflows to enable the safe and regular delivery of essential items in the DR. Understanding failure points and rates is essential to developing a preventive maintenance strategy. The latter serves to increase the reliability and longevity of aircraft. In addition, understanding the limitations of affordable solutions in relevant social, geographical and environmental contexts was one of the overarching goals of the field tests.

The field tests were carried out using 2 types of general-use drones that were adapted for cargo delivery: DJI’s M600 hexacopter drone and Vertical Technologies’ DeltaQuad, a new VTOL (Vertical Takeoff and Landing) fixed wing drone, also called a QuadPlane configuration. A total of 31 complete flights were logged (not counting shorter test flights). The types of cargo transported included items of up to 2kg including water, sample tubes, some medicines and even avocados and energy bars for testing purposes. The distances covered by the cargo drones ranged between 5 kilometers and 12 kilometers, with an altitude difference of up to 250 meters in altitude between takeoff and landing. Three technical failures were experienced and exhaustively investigated. These are detailed in the upcoming technical report.

The growing healthcare needs in the DR coupled with expensive and slow cargo delivery options makes it clear that alternative solutions are needed. Our recent trainings and field tests in the DR confirm that cargo drones can be part of the solution. That said, more field research needs to be carried out to identify the most compelling and sustainable delivery routes in the DR. This research is currently being conducted by Emprende in partnership with local universities.

Entire Fleet of Cargo Drones Tested in the Amazon Rainforest

Cross-posed from WeRobotics.

In June 2017, WeRobotics teamed up with the Peruvian Ministry of Health and Becton, Dickinson and Company (BD) to field test a fleet of affordable cargo drones in the Amazon Rainforest. BD is a leading, multi-billion dollar medical technology company. The majority of the flights were carried out by our Peru Flying Labs and UAV del Peru. During the course of two weeks, we field-tested a dozen drones including fixed-wings and hybrid drones; carrying a variety of medical payloads (medicines, diagnostic tests, blood samples) across a range of distances (stretching from 2km to 126km). These comprehensive field tests comprised over 40 flights and built on the initial tests we carried out with the Peruvian Ministry of Health in December 2016 and February 2017. Our detailed report on these recent flight tests is available here (PDF). High-resolution photos can be found here and live tweets of the field tests with additional photos and videos are available here.

In addition to testing the impact of drone flights on blood samples, BD carried out a number of finding mission to better understand the full range of health care challenges that local communities face in this region of the Amazon. The interviews also sought to provide a better understanding of the actual status of the health care systems already running in the region. While in Contamana, for example, the BD team met a woman who had arrived the night before from a remote community following serious complications in childbirth. Since drugs for treatment weren’t available in her community, she had to travel for 5 hours (3 hours walking and 2 hours by boat) while enduring postpartum hemorrhaging, to reach the hospital in Contamana. The use of a drone would have allowed emergency supplies to be delivered within 30-60 minutes directly to the remote community where the woman gave birth. This is just one of multiple findings documented by BD during the field tests; findings that indicate a clear unmet need for transporting medical supplies and, almost more importantly, patient specimens to allow for appropriate diagnosis.

At one point during our field tests, the main airport in the region, Pucallpa Airport, had to close and ground all manned aircraft for half-a-day due to dense fog, a common occurrence in the Amazon. If Contamana had been out of emergency supplies when the woman reached the hospital, it is doubtful that she or her baby would have lived unless a plane could be dispatched to deliver the supplies. What was so striking about all manned aircraft being grounded due to the fog is that it had no effect on the cargo drone flights; the drones could keep flying while a dozen manned aircraft lay idle at the airport. The drones had the entire regional airspace to themselves. Naturally, we still followed all drone regulations as required by the Peruvian Aviation Authorities.

One of the main goals of the recent field tests was to evaluate the performance and reliability of more affordable drones. Fact is, cargo drones that cost over USD 10,000 are unlikely to be appropriate for certain use-cases and contexts in the Amazon Rainforest. This not only due to budgetary constraints and the need for a viable business model but also because more expensive drones tend to be more sophisticated, thus requiring more training and often more infrastructure. The majority of drones used during the field tests were locally assembled in Lima with our Peru Flying Labs and tested there for two weeks before taking flight over the Amazon. This local capacity building strategy is central to all our Flying Labs. Furthermore, it is typically easier to repair affordable drones locally. Affordable drones also tend to be easier and cheaper to transport. In the photo above, two such drones are tied to the back of a motor taxi. Finally, there is little need for very high frequency flights in the Amazon, which means that more expensive drones and sophisticated drones may not be necessary.

Working with affordable drones obviously comes with tradeoffs, however. One of the goals of the field tests was to better understand these tradeoffs in the context of the Amazon Rainforest—not only technical tradeoffs but tradeoffs in process as well, e.g., preventive maintenance. In total, 93% of our cargo drone flights were successful with 3 flights failing shortly after takeoff, posing no physical risk to anyone. It is important to note that the root cause of two of these failures may have been linked to preventive maintenance issues (process) rather than a technical problem. The third failure was in some ways to be expected since it was specifically an experimental takeoff meant to experiment with certain parameters. In other words it was a controlled failure, as noted in our report. Telemetry, weather data and flight statistics are also available in the report, which is the only detailed, transparent and publicly available report on cargo drone trials to date.

To learn more about our lessons learned from the recent field tests in the Amazon Rainforest and our future cargo delivery projects, be sure to join our webinar next month, November 15th, at 12pm New York Time. Information on how to sign up will be made available via our email list and via social media (follow us on Twitter and Facebook). If you’d like to join future WeRobotics projects, be sure to join our roster.

In the meantime, we sincerely thank the Peruvian Ministry of Health as well as regional and local doctors and clinics in Pucallpa, Masisea, Tiruntan and Contamana for their partnership and invaluable support. We also express our very kind thanks to the Peruvian Civil Aviation Authorities (DGAC) and the airport authorities in Pucallpa for granting us permissions for the field tests. Sincerest thanks to Becton, Dickinson and Company (BD) for their partnership and support for the field tests and to the whole team at UAV del Peru for making these field tests possible. Big thanks as well to all the volunteers at Peru Flying Labs for the countless hours they put into the field tests. We’d also like to thank our technology partner, Oriol Lopez, and the missionaries in Pucallpa who lent us their airfield in San Jose.

For questions/comments and media enquiries, please contact Dr. Patrick Meier (patrick@werobotics.org) and Dr. Adam Curry (adam.curry@bd.com).

Join the conversation!
FacebookTwitterGoogle Group



From Aerial to Maritime Robotics for Payload Delivery?

WeRobotics is co-creating a global network of social innovation labs to accelerate the transfer of appropriate robotics solutions to local partners who need them the most. Launched last week at the prestigious 2016 International Drones & Robotics for Good Awards in Dubai, WeRobotics seeks to democratize the Fourth Industrial Revolution. One of several new labs under consideration is Cuyo Flying Labs in the Cuyo Archipelago of the Philippines.

CuyoPic

Our local partners in this district are outstanding public health professionals who have made a clear and data-driven case for exploring robotics solutions to improve the delivery of essential medicines across the islands of the Archipelago. WeRobotics has reached out to it’s network of Technology Partners to identify a cross-section of aerial robotics solutions. We plan to pilot and evaluate these solutions together with our local partners this year; just waiting to hear back on a number of grant proposals.

CuyoMap

Aerial robots are not the only robotics solutions out there, however. Indeed, a number of contestants at the International Drones & Robotics Awards presented maritime robotics platforms. One team from NYU Abu Dhabi presented their Reef Rover solution, which I gave high marks to (I served on the panel of judges for the finals of the championship and also had the honor of giving the opening Keynote). Fellow keynote speaker David Lang from OpenROV also presented his group’s maritime robotics solution.

So I caught up with David and told him about the possible Cuyo project. I asked him about possible autonomous maritime robotics solutions that could carry a 1- 2kg payload across a 20-mile stretch. Given that GPS signals and radio waves do not travel well underwater, the solution would need to be a surface-water robot. That said, Team NYU did come up with a neat solution to this issue as shown in the above video. But said solution may be problematic for long distances. In any event, I was surprised to learn from David that existing surface-water robotics solutions would likely range in the hundreds of thousands of dollars. So I asked David about possibility hacking a remote control boat since these toys cost a couple hundred dollars at most.

RCboat

This could totally be done, according to David. He encouraged me to blog about the humanitarian applications of small autonomous boats and to share my post with the DIY community for feedback. So here we are. I also did some research on autonomous boats and came across this high school project—aptly titled DIY boat—along with the short video below. These kinds of boats can travel between 10-25 miles per hour. Battery power won’t be an issue but salt water and robotics are not the best of friends. So developing a persistent & robust solution with sense and avoid technology will need more thought.

I also found this more recent article (February 2, 2016) on swarming robot boats that apparently demonstrate learning. More on this applied research project in the video below.

As for operating this in Cuyo, we could test out the autonomous boat late at night when no commercial boats or fishermen are likely to be out and about. The water routes would be automatically programmed so the maritime robot would simply do several runs back and forth. In other words, even if the boat can “only” carry 1kg-2kg at a time, the frequency of the trips could make up for the low payload weight—just like aerial robotics. Of course, we’d have to look up the Philippine’s maritime regulations to figure out what kinda of permits might be necessary, but I assume these regulations may not be as demanding as aviation regulations.

Screen Shot 2016-02-06 at 12.21.36 PM

In any event, WeRobotics seeks to work across multiple robotics platforms, from aerial robotics to terrestrial robotics to maritime robotics. For now, though, most of the world’s attention is focused on the hype surrounding small autonomous aerial robots. But aerial robotics won’t be the one and only wave of robotics to impact the social good space. So f you know of existing maritime solutions that we could pilot this year as part of Cuyo Flying Labs, then I’d be most grateful if you could either get in touch or leave a comment below. Many thanks!

Doctor Snow’s Health Map Propaganda

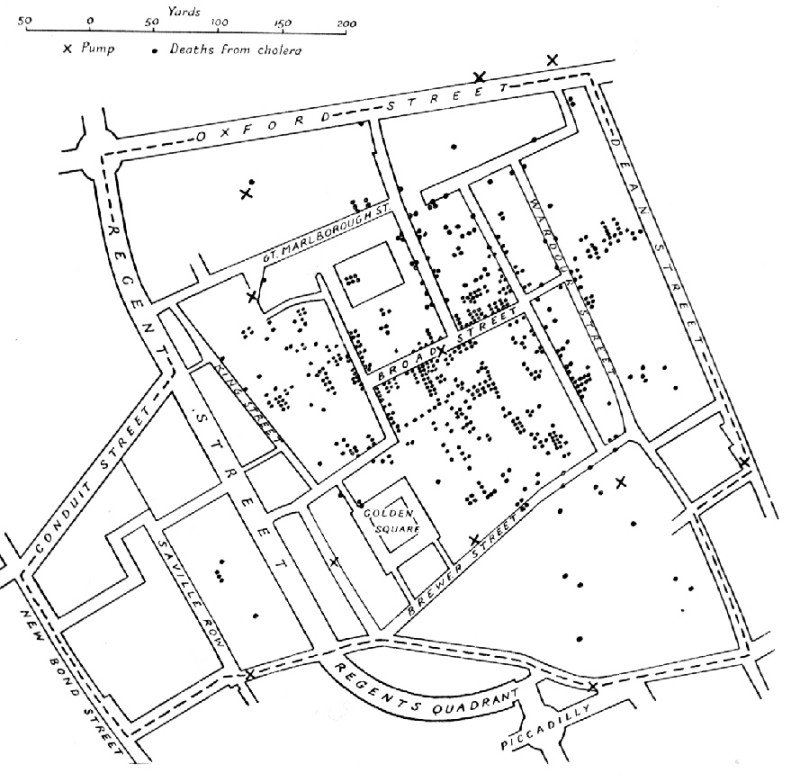

Doctor John Snow’s cholera map of 1854 is often heralded as an example of how mapping can illuminate powerful insights on otherwise hidden patterns. Not so, writes Mark Monmonier in his excellent book on “Spying with Maps” which I just reviewed here.

cholera-snow-map

Mark writes the following on John Snow’s famous map:

“If disease mapping has a poster child, it’s John Snow (1813-1858), the London anesthesiologist credited with discovering the water borne transmission of cholera. […] Snow is best known for his 1854 map showing victims’ homes clustered around Soho’s infamous Broad Street Pump, which he identified as a source of contaminated water. According to epidemiological lore, the good doctor tried unsuccessfully to convince public officials to close down the pump.”

“Undaunted, he too matters in his own hands, removed the pump’s handle, and demonstrated the correctness of his theory when new cases plummeted. Truth be told, the epidemic had already run its course. What’s more, Snow made his famous dot map several months later, for a revised edition of his book on cholera transmission. Even so, his pin map continues to embellish discussions of GIS and disease.”

“Medical geographers, GIS experts, and some epidemiologists perpetuate the Snow myth because it promotes disease mapping as a discovery tool and enhances the stature of their own disciplines. But a careful examination of Snow’s writings indicates that he understood cholera’s mode of transmission well before he made the map.”

“Although Snow was a thoughtful observer, neither his map nor those of his rivals were of any value in generating insightful hypotheses. Snow’s famous cholera map was pure propaganda—and copycat propaganda at that—but proved eminently useful later in the century, when public officials needed convincing arguments to isolate drinking water from sewage.”

Although Mark is rightfully critical of Dr. John Snow’s legendary map, the last sentence above is quite insightful. The map, while unhelpful in knowledge discovery of cholera’s source, did become “eminently useful” to influence public health policy.

Patrick Philippe Meier

Doctor Snow’s Health Map Propaganda

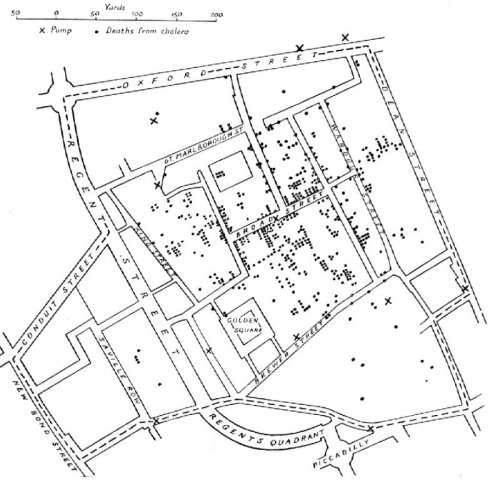

Doctor John Snow’s cholera map of 1854 is often heralded as an example of how mapping can illuminate powerful insights on otherwise hidden patterns. Not so, writes Mark Monmonier in his excellent book on “Spying with Maps” which I just reviewed here.

cholera-snow-map

Mark writes the following on John Snow’s famous map:

“If disease mapping has a poster child, it’s John Snow (1813-1858), the London anesthesiologist credited with discovering the water borne transmission of cholera. […] Snow is best known for his 1854 map showing victims’ homes clustered around Soho’s infamous Broad Street Pump, which he identified as a source of contaminated water. According to epidemiological lore, the good doctor tried unsuccessfully to convince public officials to close down the pump.”

“Undaunted, he too matters in his own hands, removed the pump’s handle, and demonstrated the correctness of his theory when new cases plummeted. Truth be told, the epidemic had already run its course. What’s more, Snow made his famous dot map several months later, for a revised edition of his book on cholera transmission. Even so, his pin map continues to embellish discussions of GIS and disease.”

“Medical geographers, GIS experts, and some epidemiologists perpetuate the Snow myth because it promotes disease mapping as a discovery tool and enhances the stature of their own disciplines. But a careful examination of Snow’s writings indicates that he understood cholera’s mode of transmission well before he made the map.”

“Although Snow was a thoughtful observer, neither his map nor those of his rivals were of any value in generating insightful hypotheses. Snow’s famous cholera map was pure propaganda—and copycat propaganda at that—but proved eminently useful later in the century, when public officials needed convincing arguments to isolate drinking water from sewage.”

Although Mark is rightfully critical of Dr. John Snow’s legendary map, the last sentence above is quite insightful. The map, while unhelpful in knowledge discovery of cholera’s source, did become “eminently useful” to influence public health policy.

Patrick Philippe Meier

Crisis Mapping and Health Geographics

Crisis Mapping is by definition a cross-disciplinary field. Crises can be financial, ecological, humanitarian, etc., but these crises all happen in time and space, and necessarily interact with social networks. We may thus want to learn how different fields such as health, environment, biology, etc., visualize and analyze large complex sets of data to detect and amplify or dampen specific patterns.

We can’t all become specialists in each others’ areas of expertise but we can learn from each other, especially if we share a common language. Like the field of complexity science, Crisis Mapping can provide a common but malleable language, taxonomy and conceptual framework to facilitate the exchange of insights driven by innovative thinking in diverse fields.

This explains why I was excited to come across the International Journal of Health Geographics a few days ago. The Journal is an online and open-access resource. This means new ideas can be shared openly, which is conducive to innovation, just like arXiv.

Two of the Journal’s latest articles caught my interest:

1) An Agent-Based Approach for Modeling Dynamics of Contagious Disease Spread

This study developed a spatially explicit epidemiological model of infectious disease to better understand how contagious diseases spatially diffuse through a network of human contacts. To do this, the authors developed an agent-based model (ABM) that integrates geographic information systems (GIS) to simulate the spatial diffusion. (See my previous post on ABM and crisis mapping).

What is very neat about the authors’ approach is that they chose to draw on georeferenced land use data and census data. In other words, they combined the fomalistic rules of ABM with empirical GIS data. This means that the model can actually be tested and different scenarios can be played out by adding or changing some of the parameters. Could we use this model for conflict contageon?

2) Combining Google Earth and GIS Mapping Technologies in a Dengue Surveillance System

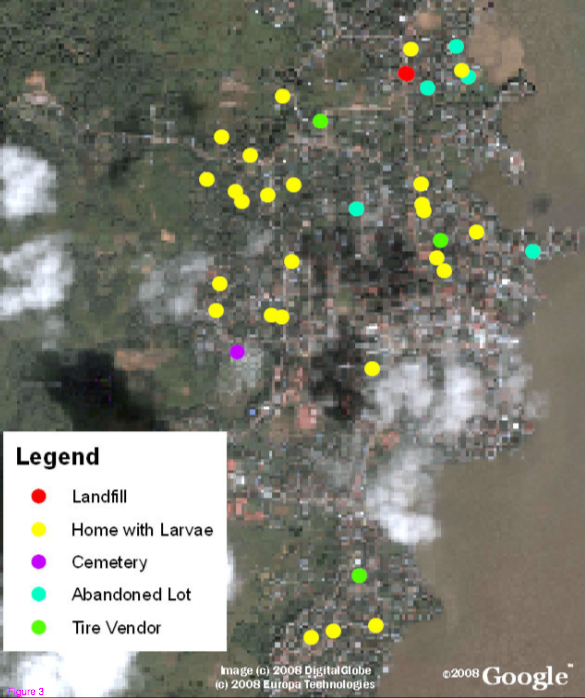

This study overlayed georeferenced epidemiological data on a town in Nicaragua with satellite imagery from Google Earth to enable dengue control specialists to prioritize specific neighborhoods for targetted interventions. The authors used ArcGIS to “accurately identify areas with high indices of mosquito infestation and interpret the spatial relationship of these areas with potential larval development sites such as garbage piles and large pools of standing water.”

It’s worth noting that the above Google Earth imagery was not particularly high resolution but the authors were still able to make full use of the imagery.

This approach to mapping for decision-support is particularly relevant for resource-limited settings since. As the authors note, the surveillance project “utilizes readily available technologies that do not rely on Internet access for daily use and can easily be implemented in many developing countries for very little cost.”

While the team had a free copy of ArcGIS thanks to the Global Fund, they plan to consider free and low-cost alternatives such as SaTScan, MapServer and Quantum GIS in the future. (See this post for additional alternatives like GeoCommons). I hope the authors also know about Walking Papers. I’ll email them just in case. Here’s to cross-disciplinary collaboration!
